The XV-02 RS chassis is an on-road variant of the rally XV-02 platform. The kit is mainly oriented for on-road, and features updates such as dedicated 3.5mm thick carbon fiber damper stays, aluminum-cylinder oil dampers employing shaft length suited for on-road performance, and carbon fiber-reinforced rigid lower chassis.
On-Road Oriented Rally Chassis!
This 4WD touring chassis assembly kit features a front midship motor and transmits power from the spur gear in the center via identical length front and rear propeller shafts, and is ideally setup for on-road running. 39T differential gears front and rear, and one setup option 40T differential gear are included, facilitating changes to drive balance. It features optimum balance and a slim chassis with carbon fiber-reinforced rigid lower deck. The 4-wheel independent double wishbone suspension has dedicated aluminum-cylinder oil dampers.
Key Features:
- Features aluminum-cylinder oil dampers employing shaft length suited for on-road performance and dedicated 3.5mm thick carbon fiber damper stays, and carbon fiber-reinforced rigid lower chassis.
- 18-spoke wheels are paired with racing semi-slick tires.
- Equipped with front midship motor plus identical length front and rear long propeller shafts.
- Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
- Use 39T gears (w/15T gears) on the front and rear for standard drive balance, 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear. *Use the latter two with slipper clutch and center differential.
- A longitudinal battery pack is positioned in the center-left for optimum balance.
- The flat chassis bottom and skid angle on the front bumper further contribute to limit surface contact under driving conditions.
- Caster blocks feature an angle of six degrees.
- Includes front and rear universal drive shafts, and an aluminum servo mount.
What's In The Box?
- Tamiya 1/10 XV-02 RS Chassis Kit
Required for Operation (Not Included)
- 2Channel RC System
- Steering Servo
- Battery and Charger for Chassis
- 1/10 Polycarbonate Body Shell
- Motor
- Electronic Speed Controller
- Building Tools
- PS Paint

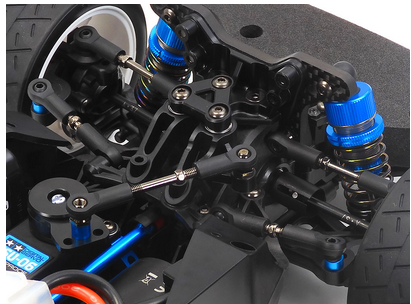

The chassis employs an aluminum servo mount and hi-torque servo saver. Turnbuckle rods allow swift steering adjustment.

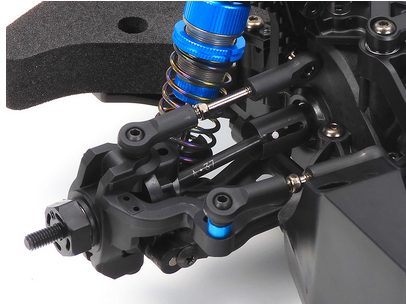

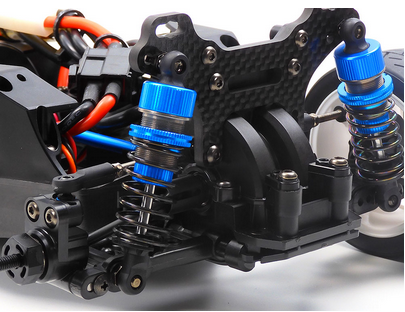

The double wishbone front suspension features 6-degree caster blocks.

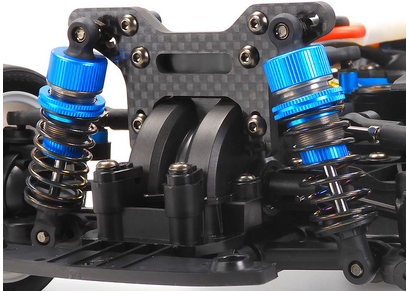

High performance aluminum cylinder dampers are touring car size, with 30.5mm piston rods. The damper stay is 3.5mm thickness carbon fiber.
Identical length propeller shafts transmit power from the central spur gear to the front and rear.

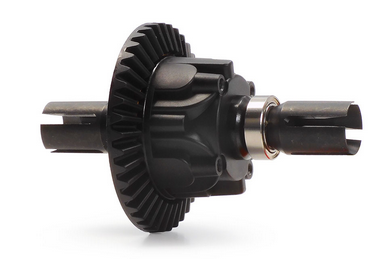

Sealed front and rear gearboxes house oil filled gear differentials.

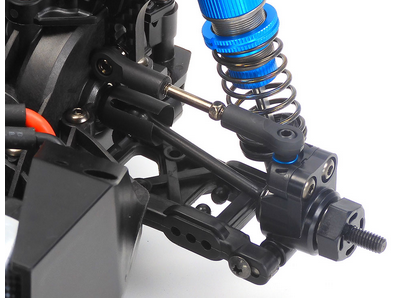

Upper arm attachment in the double wishbone rear suspension can be altered by the use of spacers from separately sold Item - 53539
Rear aluminum cylinder oil dampers are also touring car size.

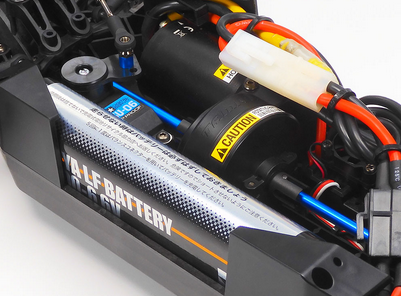

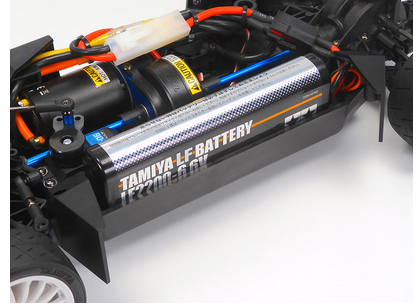

The battery pack sits on its side, allowing a narrower chassis. Access it by opening the levers front and rear, as shown here.

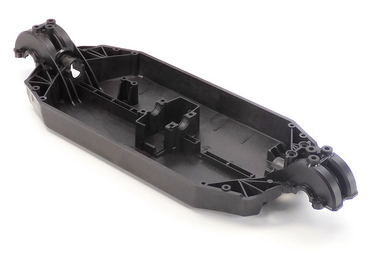

Take a closer look at the carbon fiber-reinforced plastic lower deck.
The chassis' flat underside and angled bumper help it negotiate bumpy surfaces.

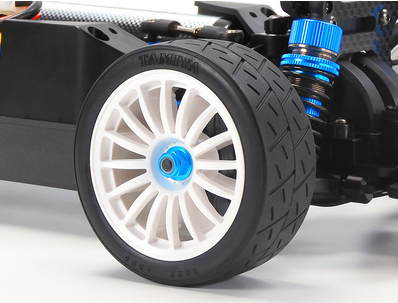

White fin spoke wheels are paired with racing semi-slick tires.

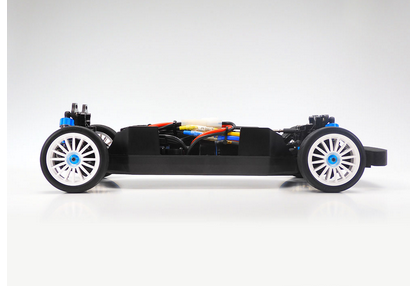

This chassis has a seriously low center of gravity!
Technical Specifications:
Length: 368mm, width: 180mm
Wheelbase: 257mm
Carbon fiber-reinforced plastic bathtub frame
Front midship motor, shaft-driven 4WD
Front & rear oil-filled gear differentials
3-piece steering tie-rod
4-wheel double wishbone suspension
Aluminum cylinder oil dampers (blue caps, touring car size)
Gear ratio = 7.00:1 using kit 26T pinion (14 ratios between 10.71:1 and 6.28:1 are possible with separately sold pinions)
Electronic speed controller (ESC) is sold separately.
