This is an updated re-release version of the Fire Dragon, a 4WD buggy originally sold in 1989 and based upon a car in the popular 1980s Japanese comic "Rajicon Boy." Its polycarbonate body features a distinctive swept form, is pre-painted in red, and is even pre-cut for your convenience - just apply the included stickers. An unpainted driver figure is also included for installation in the cockpit. The chassis is an efficient shaft-driven 4WD unit, with front and rear gear differentials in sealed gearboxes, plus 4-wheel independent double wishbone suspension featuring CVA oil dampers. Spike tires give plenty of grip both on- and off-road..
Efficient Shaft-Driven 4WD
The Fire Dragon (2020) chassis features a shaft-driven 4WD drivetrain married to a lightweight and tough bathtub frame that employs front and rear gearboxes with the suspension attached to them; that suspension utilizes upper "I" and lower "H" arms, and offers a ground-hugging drive. Both gearboxes house a gear differential, and are compact to ensure plentiful ground clearance. The kit also features an aluminum motor mount for superior heat dissipation.
Key Features:
- The chassis consists of a tough bathtub frame plus front and rear gearboxes with suspension attached
- 4-wheel double wishbone suspension uses CVA oil dampers for a superior ride, and a front stabilizer for a firm setup
- Aluminum motor mount gives improved rigidity
- Front and rear sealed differentials are die-cast 3-bevel types for superior handling feel
- Adjusters in the 3-piece steering tie-rod setup to alter toe
- Body is molded in polycarbonate and pre-painted red. Just apply stickers to complete it
- Includes 540-type motor
Required for Operation (Not Included)
- 2-Channel Radio
- Steering servo
- Electronic Speed Controller
- 7.2-7.4V battery pack for chassis
- Charger

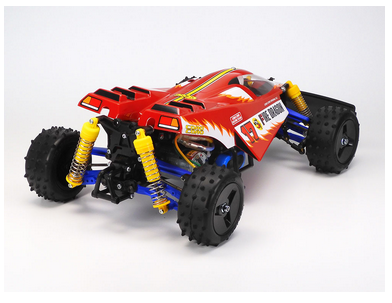

The stylish, streamlined body features distinctive flared sides. It is pre-painted in red and pre-cut for convenience.

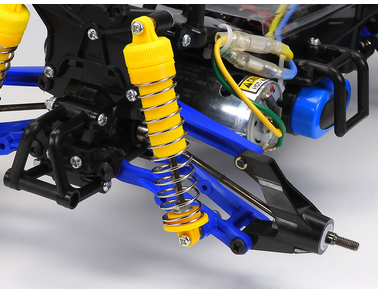

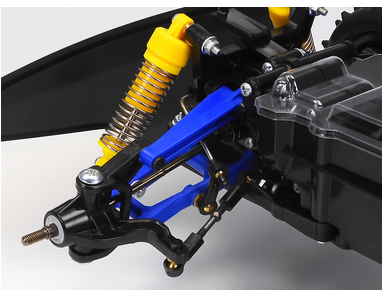

CVA mini oil dampers are employed on the front suspension. A stabilizer helps combat roll in corners for a stable drive.
A polycarbonate dust cover for the chassis helps protect the innards from the potentially damaging effects of dust and dirt
The Fire Dragon's rear suspension also features CVA oil dampers (short type), for smooth and consistent suspension stroke.
Technical Specifications:
Length: 390mm
Width: 240mm
Height: 139mm
Wheelbase: 260mm
Minimum ground clearance: 23mm
Tread: 203mm (front), 194mm (rear)
Bathtub frame
Tire width/diameter: 38/83mm (front and rear)
Shaft-driven 4WD
3-bevel differential gears (front and rear)
3-piece steering tie-rod ★4-wheel independent double wishbone suspension
Gear ratio = 7.68:1
Type 540 Motor
